round LCD monitor

Product Description

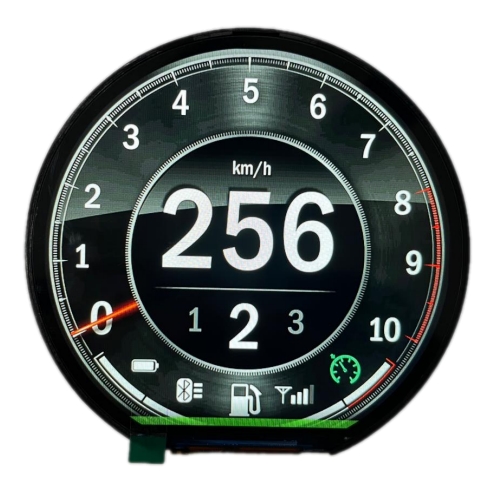

Circular products are used in smart wearables, 2-wheeler dashboards, car knob displays, etc., in some special fields.
Circular LCD display, respectively 1.28 Inch, 1.6 Inch, 2.1 Inch, 2.76 Inch, 3.4 Inch, 3.6 Inch, 4.0 Inch, 5.0 Inch

Details

ABOUT US

5.0 Inch TFT LCD

Contents	Description
Display outline size	120.7 mm (H ) x 76.3 mm ( V ) x 3.1 mm ( D )
VA size	108.6 mm ( H ) x 64.8 mm ( V )
Resolution	800 RGB ( H ) x 480 ( V )
With /Without Touch screen	CPT / RTP optional / Without
Interface	24 − bit RGB Strip
Connector	0.35Width , 0.5Pitch
Color	262k Colors
Drive IC	OTA7001AC , OTA9960A

ABOUT US

Projected Capacitive Touch Screen

CONTENT	DESCRIPTION
Operating Voltage	2.8V-5.5V DC
Light transmittance	86%-88%
Structure	PMMA/PET/GLASS+OCA+GLASS/GFF/GF
Surface hardness	6H/7H
Input method	Conductive metal pen or finger
Electric shock jitter time	<3ms
Operating temperature	-20℃ to 70℃
Storage temperature	-30℃ to 80℃
Operating pressure	Capacitive sensing, no operating force required
Glass thickness	0.4mm、0.55mm、0.7mm、1.1mm、1.8mm
life	More than 100 million times

ABOUT US

Resistive Touch Screen

CONTENT	DESCRIPTION
Circuit Rating	3.3-5V DC, 35mA
Light transmittance	89%
Contact jitter time	<2ms
Resolution	1024*1024
Surface hardness	6H
Input method	Conductive metal pen or finger
Lifespan	Greater than 225 million
Operating temperature	-20℃ to 70℃
Storage temperature	-30℃ to 80℃
Lens material	Chemical tempered glass
Glass thickness	0.4mm, 0.55mm, 0.7mm, 1.1mm, 1.8mm
